SECTIONAL AND BASCULANT GATES

THE AUTOMATION FOR SECTIONAL AND BASCULE DOORS

PRAKT-GAR.AS
Low voltage electromechanical gearmotor PRAKT and GAR.AS for the automation of sectional and bascule doors suitable for domestic use.

Technical features		PRAKT 60	PRAKT 120	GAR.AS 60	GAR.AS 120

Power supply of the motor	(Vcc)	24	24	24	24
Absorption	(A)	0.7	1.2	0.7	1.2
Door maximum size	(m²)	10	14	10	14
Weight of the operator	(Kg)	12 Kg	14 Kg	12 Kg	14 Kg
Noise level	(db)	<30	<30	<30	<30
Maximum thrust	(N)	600	1200	600	1200
Frequency of use	(%)	70	70	70	70
Recommended daily revolutions	(n°)	100	200	100	200
Opening – closing time	(Sec.)	12	12	9	9
Protection class	IP	30	30	30	30

Dimensions

Gearmotor		cod.	Euro + iva

	PRAKT08 60 Motoriduttore irreversibile a traino 60Kg a 24Vcc con encoder. Completo di centralina ACTION, modulo radio e luce di cortesia. Viene fornito con il pignone per la trasmissione a catena.	12007010
	PRAKT08 120 Ceiling traction irreversible gearmotor 120Kg, 24Vdc with encoder. Complete with control unit, radio module and courtesy light. Provided with pinion for chain transmission	12007015
	GAR.AS 60 ceiling traction irreversible 24Vcc gearmotor 60 Kg., with opening and closing limit switches. Complete with GAR.AS control unit, radio module and courtesy light. Supplied with pinion for chain transmission.	12007011
	GAR.AS 120 ceiling traction irreversible 24Vcc gearmotor 120 Kg., with opening and closing limit switches. Complete with GAR.AS control unit, radio module and courtesy light. Supplied with pinion for chain transmission.	12007016

Accessories		cod.	Euro + iva

	PROFILE X 3L: complete chain transmission with 3 m sheet metal or aluminium guide
	PROFILE X 3L: complete chain transmission with 3 m sheet metal guide. (minimum 20 pc)	12007032
	PROFILE X 3A: complete chain transmission with 3 m aluminium guide	12007031
	PROFILE X 1,5+1,5A: complete chain transmission with 1,5+1,5 m aluminium guide	12007030
	PROFILE Y: complete belt transmission with 3 m sheet metal or aluminium guide
	PROFILE Y 3A: complete belt transmission with 3 m aluminium guide	12007041
	PROFILE Y 1,5+1,5A: complete belt transmission with 1,5+1,5 m aluminium guide	12007040
	Extention set 1 mt	64100091
	1 m long extension kit with chain for aluminium guide and chain transmission	64100106
	1 m long extension kit for aluminium guide and belt transmission (8m belt)	64100110
	Extention drawing clamp (straight)	64100099
	Bascule arc adapter, with counterweight (to be used with suitable ACTION contro unit)	64100092
	Unlocking device SB-COR with handle and string	64100045

ELECTROMECHANICAL GEARMOTOR FOR INTERNAL USE

BAS
BAS low voltage electromechanical gearmotor suitable for bascule doors with domestic use.


Technical features		BAS 24	BAS 230

Power supply		24 Vcc	230 Vac 50 Hz
Absorption	(A)	2.1	1.3
Power of the motor	(W)	50	250
Door maximum dimensions	(m²)	10	10
Condenser	(µF)	-	12.5
Maximum torque	(Nm)	200	200
Opening – closing time	(sec)	15	15
Service	(%)	60	50
Protection degree	(IP)	30	30
Control unit		ACTION	ERMES

Dimensions

Gearmotor		cod.	Euro + iva

	BAS24 encoder Irreversible electromechanical gearmotor 24Vdc complete with control unit, radio module IB1 and courtesy light. Control unit with on-board radio receiver. Easy and fast, decelerations both at opening and closing, adjustable electrical clutch
	BAS24 encoder with control unit	12007230
	BAS24 encoder motor only	64000214
	BAS 230 Irreversible electromechanical gearmotor 230Vac complete with control unit, radio module IB1 and courtesy light. On-board control unit with radio receiver. Electronic torque adjuster, adjustable decelerations both at opening and closing, independe
	BAS230 encoder with control unit	12007200
	BAS230 motor only	64000210

Accessories		cod.	Euro + iva

	Fixation side-member, lenght 150 cm, in galvanized steel	64100070
	SB-COR unlocking device with string and handle	64102100
	Complete set Kit 1 with bent arms	64100060
	Complete set Kit 2 with straight arms	64100061
	Complete set Kit 3 with straight arms for 2 motors	64100062
	Complete set Kit 4 with bent arms for 2 motors	64100063
	24CBA: 24V battery charger card with guided coupling couple guide and electronic control of charge level.	12000780
	Rechargeable battery 12V. 7,2 Ah; with considerable electrical power allows the regular operation of the automation for a hundred movements (order 2 pieces for each control unit).	61400056

ROAD BARRIERS

ROAD BARRIER FOR BARS UP TO 4 MT

BEVP3 - BEVP4

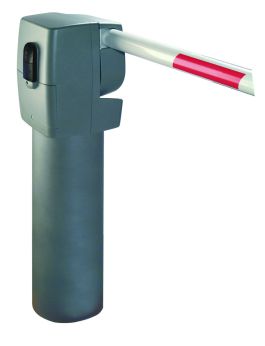

Road barrier BEP4 for the automation of private or public car parks.

Technical features		BEVP3-BEVP4


Power supply	(Vac - 50Hz)	230
Absorption	(A)	0.32
Power of the motor	(W)	72
Maximum bar dimension	(mt)	3 - 4
Operator weight	(Kg)	40
Working temperature	(°C)	10 / +55
Maximum torque	(Nm)	100
Service	(%)	90
Recommended daily revolutions	(n°)	600 - 400
Opening – closing time	(sec)	3-3.5
Protection degree	(IP)	44

Dimensions

Gearmotor		cod.	Euro + iva

	BEVP3 24Vcc road barrier with control unit and radio receiver on board for passages up to 3 meters.	12007360
	BEVP4 24Vcc road barrier with control unit and radio receiver on board for passages up to 4 meters.	12007365
	Important: the package includes the backing plate, the telescopic boom for 3 or 4 meters and the adhesive signal labels.

Accessories		cod.	Euro + iva

	24CBA: 24V battery charger card with guided coupling couple guide and electronic control of charge level.	12000780
	Rechargeable battery 12V. 7,2 Ah; with considerable electrical power allows the regular operation of the automation for a hundred movements (order 2 pieces for each control unit).	61400056
	Vehicle presence detector, amplifier for magnetic loops with 1 relay. Power supply 24Vca/Vcc. Size (mm) 79x22.5x90	61402000

ROAD BARRIER FOR BARS UP TO 6 MT

BEVX6 - BEVL6
Road barrier BEVX6 - BEVL6 for the automation of private or public parks.

Technical features		BEVX6 / BEVL6

Motor power supply	(Vcc)	24
Average absorption	(A)	3.5
Power of the motor	(W)	60
Maximum bar dimension	(Mt)	6
Weight of the operator	(Kg)	48
Noise level	(db)	< 30
Thermal intervention	(°C)	120
Service	(°C)	70
Recommended daily revolutions	(n°)	300
Opening/closing time	(sec)	12
Protection class	(IP)	44

Dimensions

Gearmotor		cod.	Euro + iva

	BEVX6 24Vcc road barrier with GAR.AS control unit series on board. Supplied without clump hub.
	BEVX6: version with stainless steel covering.	12007342
	BEVL6 version barrier with painted sheet coating. (Minimum order 5 pieces).	12007347

Accessories		cod.	Euro + iva

	Clamp hub for rectangular bar	64100366
	Clamp hub for round bar	64100365
	Backing plate	64100081
	Rectangular aluminium bar .
	- A3, lenght 3 mt.	64100086
	- A4, lenght 4 mt.	64100085
	- A5, lenght 5 mt.	64100088
	- A6, lenght 6 mt.	64100077
	Round aluminium bar .
	AT3, lenght 3 mt.	64100357
	AT4, lenght 4 mt.	64100358
	AT5, lenght 5 mt.	64100359
	AT6, lenght 6 mt.	64100360
	24CBA: 24V battery charger card with guided coupling couple guide and electronic control of charge level.	12000780
	Rechargeable battery 12V. 7,2 Ah; with considerable electrical power allows the regular operation of the automation for a hundred movements (order 2 pieces for each control unit).	61400056
	Vehicle presence detector, amplifier for magnetic loops with 1 relay. Power supply 24Vca/Vcc. Size (mm) 79x22.5x90	61402000
	Fixed support stake	64100082
	Mobile support stake, hanging	64100083
	Red sticky label signs	61631600

THE AUTOMATION FOR PRIVATE OR PUBLIC VEHICULAR TRAFFIC, FOR SEMI-INTENSIVE USE AND FOR PASSAGES UP TO 5 MT

BRT
BRT electromechanical gearmotor, ideal for parking lots where a frequent operation is needed.


Technical features		BRT SIMPLE	BRT FAST

Power supply of the motor	(Vcc)	230	230
Average absorption	(A)	1	1.48
Power of the motor	(W)	230	340
Maximum torque	(N)	80	106
Maximum bar length	(Mt)	3-4 (5)	3
Weight of the actuator	(Kg)	62	62
Operation temperature	(°C)	-10 / +55	-10 / +55

AllMatic

Experience, research ability, flexibility and customer nearness are values that cannot be quantified but which are appreciable only by getting to know ALLMATIC and its dedicated staff. The products on this list are the results of more than 30 years long work in the field of home automation. The permanent development has produced important functional and design innovations. The commitment combines heavy investments in technological development with customercentred service. ALLMATIC is at all times a reliable reference point for the customer, for whom it provides tailored solutions.

SLIDING GATES

THE AUTOMATION FOR RESIDENTIAL USE

SIM
SIM electromechanical gearmotor for external installation with full metal gears, ensuring optimal performance and reliability.

Technical features		SIM1 230	SIM 24

Power Supply		(Vac 50 Hz) 230	(Vdc) 24
Absorption	(A)	1.3	2.5
Maximum power of motor	(W)	280	60
Gate maximum weight	(kg)	400	400
Condenser	(µF)	12.5	-
Speed	(m/min)	10	12
Maximum thrust	(N)	300	280
Service	(%)	50	70
Recommended daily revolutions	(n°)	150	250
Protection Class	(IP)	44	44
Control unit		AV1	ACTION S1

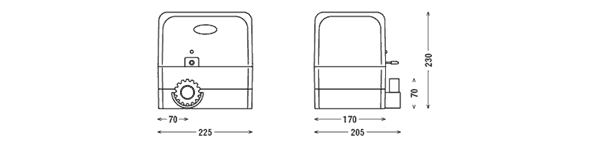

Dimensions

Gearmotor		cod.	Euro + iva

	SIM 24 is an electromechanical irreversible 24Vcc gearmotor with encoder for sliding gates up to a weight of 400 Kg. ACTION S1 control unit with radio receiving module and electronic clutch with anti-squeezing security device is assembled on-board.	12007133
	SIM 24 FM gearmotor version with magnetic limit switch.	12007118
	SIM1 230 is an electromechanical irreversible 230Vac gearmotor for sliding gates up to a weight of 400 Kg. AV1 Control unit with radio receiving module and electronic torque adjuster is assembled on-board.	12007120
	SIM1 230 FM gearmotor version with magnetic limit switch.	12007115

Accessories		cod.	Euro + iva

	Backing plate (for SIM24 and SIM1 230)	64100055
	Winter: Heater card for 230 Vac motors controlled through a thermostatic probe. Setting of heater voltage by means of comfortable jumper connections.	12000770
	24CBA: 24V battery charger card with guided coupling couple guide and electronic control of charge level.	12000780
	Rechargeable battery 12V, 1.3Ah. The small size allows the easy fitting inside the motor (order 2 pieces for each control unit).	61400053
	R2: Card providing extended functions for the control unit 230 Vac. Clean contacts to control electrical lock and courtesy light.	12001703
	Nylon rack with steelcore, fixation gills and screws.	12007190
	Galvanized steel rack 30x12x1000mm with spacers and set of screws	64100005
	Galvanized steel rack 22x22x2000mm	64100006

THE AUTOMATION FOR RESIDENTIAL USE

SUPER SIM
SUPER SIM electromechanical gearmotor for external installation with full metal gears, ensuring optimal performance and reliability.
Electromechanical gearmotor suitable for gates up to 1000 Kg

Technical features		SUPER SIM	SUPER SIM 24V

Power Supply		(Vac 50 Hz) 230	24 Vcc
Absorption	(A)	1.7	3
Power of motor	(W)	330	72
Gate maximum weight	(kg)	1000	800
Condenser	(µF)	12.5	-
Speed	(m/min)	10	12
Maximum thrust	(N)	600	500
Service	(%)	50	70
Recommended daily revolutions	(n°)	200	350
Protection Class	(IP)	44	44
Control unit		AV1 / ERMES10	SCOR.AS

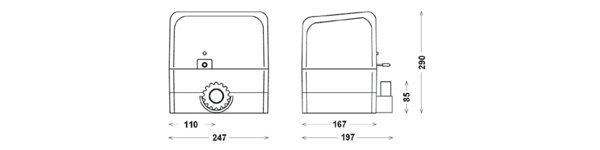

Dimensions

Gearmotor		cod.	Euro + iva

	SUPER SIM is an electromechanical irreversible 230 Vac gearmotor for sliding gates up to a weight of 1000 kg. On-board AV1 control unit with radio receiver and torque regulator RPEC1.	12007170
	SUPERSIM RA: gearmotor version with control unit ERMES 10 on board.	12007174
	SUPER SIM 24V is an electromechanical irreversible 24 Vac gearmotor for sliding gates up to a weight of 800 kg. On-board SCOR.AS control unit with radio receiver.	12007177

Accessories		cod.	Euro + iva

	Backing plate for SUPER SIM	64100056
	R2: Card providing extended functions for the control unit 230 Vac. Clean contacts to control electrical lock and courtesy light.	12001703
	Winter: Heater card for 230 Vac motors controlled through a thermostatic probe. Setting of heater voltage by means of comfortable jumper connections.	12000770
	24CBA: 24V battery charger card with guided coupling couple guide and electronic control of charge level.	12000780
	Rechargeable battery 12V, 1.3Ah. The small size allows the easy fitting inside the motor (order 2 pieces for each control unit).	61400053
	Nylon rack with steelcore, fixation gills and screws.	12007190
	Galvanized steel rack 30x12x1000mm with spacers and set of screws	64100005
	Galvanized steel rack 22x22x2000mm	64100006

THE AUTOMATION FOR SEMI-INTENSIVE AND INDUSTRIAL USES

BIG
BIG electromechanical gearmotor for external installation with full metal gears, ensuring optimal performance and reliability.


Technical features		BIG 0.8	BIG 2.2

Power supply	(Vac 50 Hz)	230	230
Absorption	(A)	1.38	1.1
Motor power	(W)	272	247
Gate maximum weight	(Kg)	1000	2200
Condenser	(µF)	12.5	16
Maximum thrust	(N)	600	1150
Recommended daily revolutions	(n°)	300	800
Service	(%)	50	70
Protection class	(IP)	44	44
Control unit		ERMES	ERMES

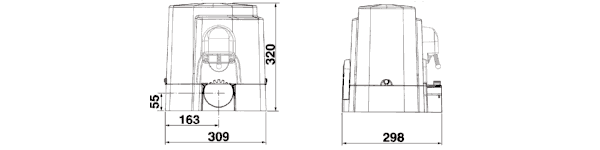

Dimensions

Gearmotor		cod.	Euro + iva

	BIG 0.8 is an electromechanical irreversible 230 Vac gearmotor for sliding gates up to a weight of 800 kg. On-board ERMES electronic control unit with radio receiver. Electronic torque adjuster with adjustable slowing-downs both in the opening and closing	12007135
	BIG 2.2 is an electromechanical irreversible 230 Vac gearmotor for sliding gates up to a weight of 2200 kg. On-board ERMES electronic control unit with radio receiver. Electronic torque adjuster with adjustable slowing-downs both in the opening and closin	12007137

Accessories		cod.	Euro + iva

	Backing fixation plate	64100210
	Nylon rack with steelcore, fixation gills and screws.	12007190
	Galvanized steel rack 22x22x2000mm	64100006
	Winter: Heater card for 230 Vac motors controlled through a thermostatic probe. Setting of heater voltage by means of comfortable jumper connections.	12000770

SWINGING GATES

THE AUTOMATION FOR RESIDENTIAL USES

AX-222
Linear electromechanical gearmotor AX-222 for residential use, extruded aluminium structure, high performance electrical motor.


Technical features		AX-222	AX-222/1 24V

Power supply		230 Vac - 50Hz	24 Vcc
Absorption	(A)	1	1,7
Power	(W)	200	41
Gate maximum weight	(Kg)	200	200
Condenser	(µF)	12,5	-
Gate maximum length	(m)	2,5	2.5
Maximum stem stroke	(mm)	400	400
Maximum thrust	(N)	1500	1500
Service	(%)	50	80
Recommended daily revolutions	(n°)	100	250
Protection class	(IP)	55	55
Control unit		C2	AS24

Dimensions

Gearmotor		cod.	Euro + iva

	AX-222 electromechanical gearmotor 230Vac. Extruded aluminium structure with high performance electrical motor. Easily adjustable limit switch both in opening and in closing function. Stem stroke 400mm
	AX-222 version 230Vac	12007425
	AX-222/1 24V version 24Vac	12007421

The control unit		cod.	Euro + iva

	C2 Control unit with on-board radio receiver for the control of 2 wings. Easy and fast learning of the stroke, collective function and pedestrian opening. Extractable terminal board to simplify the installation and the maintenance.
	C2 Control unit in Box GEROS	12006532
	C2 Control unit in Box Allmatic	12006517
	ARGO1-2 Control unit with on-board radio receiver for the control of 1-2 wings. Electronic clutch with easy and fast adjustment of the stroke, possibility to adjust the delay of the second wing. Slowing down both at opening and closing phase. Suitable bot
	ARGO1M	12006511
	ARGO2M	12006501
	AS24: control unit for 1-2 wing motors 24V without encoder. Easy and fast learning function, adjustable electronic clutch and anti-squeezing security device. Wide possibility to adjust the door’s motion. Extractable terminal board to make the installation and the maintenance easier.
	AS24	12006668

Accessories		cod.	Euro + iva

	RPEC1 Torque adjuster for C2 control unit. It can be connected to the control unit by means of an easy and practical guided coupling.	12000445
	24CBA: 24V battery charger card with guided coupling couple guide and electronic control of charge level.	12000780
	Mechanical closing stop for AX-222	64000640

THE AUTOMATION FOR SEMI-INTENSIVE AND COLLECTIVE USES

PLUS
Electromechanical gearmotor PLUS/PLUS L for external installation.


Technical features		PLUS / PLUS L	PLUS 24V

Power supply		230 Vac - 50 Hz	24 Vcc
Absorption	(A)	1.2	5.4
Power of the motor	(W)	290	118
Gate maximum weight	(Kg)	400 - 500	400
Condenser	(µF)	10	-
Gate maximum width	(m)	3.5 - 4.5	3.5
Stem stroke	(mm)	340 - 470 *	340 *
Maximum thrust	(N)	1800	1800
Service	(%)	60	90
Recommended daily revolutions	(n°)	150	400
Protection class	(IP)	44	44
Control unit		ARGO 1-2	AS24
* The use of limit switches in the closing phase reduces the maximum stroke of 3 cm.

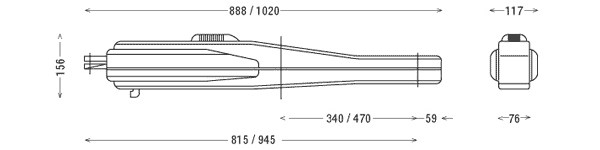

Dimensions

Gearmotor		cod.	Euro + iva

	PLUS Electromechanical irreversible gearmotor 230Vac. Structure completely in die cast aluminium. Refined mechanics with a large 3 – thread endless screw, double helical impact – proof gear for wings up to 3,5 mt. Easily adjustable limit switch in opening and/or closing phase.	12007430
	PLUS L Version gearmotor for wings up to 4.5 mt.	12007435
	PLUS 24V Version 24Vcc of the gearmotor for wings up to 3.5 mt.	12007433

The control unit		cod.	Euro + iva

	ARGO1-2 Control unit with on-board radio receiver for the control of 1-2 wings. Electronic clutch with easy and fast adjustment of the stroke, possibility to adjust the delay of the second wing. Slowing down both at opening and closing phase. Suitable bot
	ARGO1M	12006511
	ARGO2M	12006501
	AS24: control unit for 1-2 wing motors 24V without encoder. Easy and fast learning function, adjustable electronic clutch and anti-squeezing security device. Wide possibility to adjust the door’s motion. Extractable terminal board to make the installation and the maintenance easier.
	AS24	12006668

Accessories		cod.	Euro + iva

	R2: Card providing extended functions for the control unit 230 Vac. Clean contacts to control electrical lock and courtesy light.	12001703
	24CBA: 24V battery charger card with guided coupling couple guide and electronic control of charge level.	12000780
	Mechanical closing stop for PLUS-PLUS L	64100232

THE AUTOMATION FOR COLLECTIVE AND INDUSTRIAL INTENSIVE USES

IDR
Hydraulic IDR gearmotor for external installation.

Technical features		IDR 1	IDR 2	IDR 3

Power supply	(Vac 50/60 Hz)	230	230	230
Absorption	(A)	0.8	0.95	0.95
Motor power	(W)	180	220	220
Maximum weight	(Kg)	400	500	1000
Condenser	(µF)	8	12.5	12.5
Gate maximum width	(m)	3 *	4 *	7 *
Stem stroke	(mm)	270	270	270
Maximum thrust	(N)	2500	6400	6400
Service	(%)	80	90	90
Recommended daily revolutions	(n°)	700	1100	1600
Protection class	(IP)	55	55	55
Control unit		A1E / A2E
* The versions with bidirectional blocking device (AC) and with blocking device only on closing phase (SC) require the installation of the electrical lock if the wing is longer than 1,8 m.

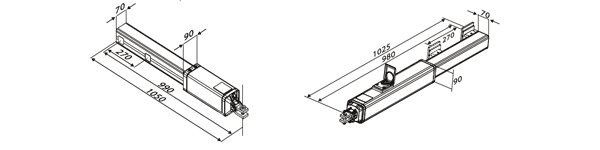

Dimensions

Gearmotor		cod.	Euro + iva

	IDR1 Hydraulic gearmotor for wing gates with residential use, suitable for wings up to 3 m. Available without blocking device (SB) and with blocking device only in closing phase (SC).
	IDR1 SB	12007452
	IDR1 SC	12007450
	IDR1 Hydraulic gearmotor for wing gates with residential use, suitable for wings up to 3 m. Available without blocking device (SB) and with blocking device only in closing phase (SC).
	IDR2 SB	12007462
	IDR2 SC	12007464
	IDR2 AC	12007460
	IDR3 Hydraulic gear motor with blocking device on closing phase for wing gates with collective use, suitable for wings up to 7 m. Available without blocking device (SB), with blocking device only on closing phase (SC), only on opening phase (SA) and bidir
	IDR3 SB	12007472
	IDR3 SC	12007474
	IDR3 SA	12007476
	IDR3 AC	12007470

The control unit		cod.	Euro + iva

	ARGO 1/2 Control unit: control unit with incorporated radio receiver for the control of 1/2 wings. Electronic clutch with easy and fast torque adjuster, possibility to adjust the delay of the second wing. Suitable for symmetrical and asymmetrical gates, thanks to the possibility to operate the stroke of the wings in an independent way. To use without slowing down.
	ARGO1M	12006511
	ARGO2M	12006501
	Control unit A1E for 1 motor, extractable logic card, preflashing, collective function; molex radio card and torque adjuster separately required.
	A1E	12000627
	Control unit A2E for 1/2 motors, extractable logic card; molex radio card and torque adjuster separately required.
	A2E	12000632

THE RETRACTABLE UNDERGROUND AUTOMATION

INT R
Electromechanical gearmotor INT R for underground installation.

Technical features		INT R/1


Power supply	(Vac 50 Hz)	230
Absorption	(A)	1.1
Power of the motor	(W)	200
Condenser	(µF)	15
Maximum wing width	(m)	3.5
Thrust	(N)	300
Service	(%)	50
Recommended daily revolutions	(n°)	150
Protection class	(IP)	67
Control unit		C2 / ARGO 1 - 2

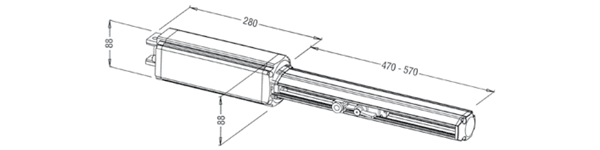

Dimensions

Gearmotor		cod.	Euro + iva

	INT R/1 electromechanical 230Vcc gearmotor. Strong die cast aluminium structure which can support great force. Totally slide away installation inside the foundation box. Inlude part of levers for 110° opening.
	INT R/1	64000123
	CA10 steel foundation box with hot galvanized steel cover.	12007605
	CAC10 steel foundation box and cover treated in cataphoresis.	12007604
	Group of levers for opening up to 360°	64000129
	SBL – CH : unlocking system with personalized key	64000128
	SBL – LEV : unlocking system for at lever	64000125

The control unit		cod.	Euro + iva

	ARGO1-2 Control unit with on-board radio receiver for the control of 1-2 wings. Electronic clutch with easy and fast adjustment of the stroke, possibility to adjust the delay of the second wing. Slowing down both at opening and closing phase. Suitable bot
	ARGO1M	12006511
	ARGO2M	12006501
	C2 Control unit with on-board radio receiver for the control of 2 wings. Easy and fast learning of the stroke, collective function and pedestrian opening. Extractable terminal board to simplify the installation and the maintenance.
	C2 Control unit in Box GEROS	12006532
	C2 Control unit in Box Allmatic	12006517

Member of:

Safe Website

AllMAtic

AllMatic
