Shanghai Jindun

Shanghai Jindun Industrial Group Co., Ltd is the group company which takes Shanghai Jindun Fire-fighting Security Equipment Co., Ltd as the flagship company. It is found in 1986, locating in Shanghai which is called the Oriental Pearl. The registered capital is 120 million. It is composed of 6 full-capital subsidiaries, with 26.2square kilometres industrial area and base for manufacturing reachsearch and development in shanghai pudong new area in shanghai lingang and Ruian of zhejiang . It has been continuously awarded as Top 30 of Chinese Fire-fighting Industry since 1998. It is also the director enterprise of Chinese Fire-fighting Association and vice-director of Fire-fighting Industry Committee of Shanghai. Jindun Group is one of the leading enterprises of fire-fighting industry in China.

● Jindun Group specializes in producing and selling various fire-fighting equipments and also integrates scientific research and development, manufacturing, supplying of complete set of equipment, international trade, design, construction and maintenance for fire-fighting project. Our products mainly include: Automatic Sprinkler System, Gas Extinguishing System, Reserved Pressure Type HFC-227ea Fire Extinguishing System, Low Expansion Foam Extinguishing System, Water Mist Automatic Extinguishing System, Fire Monitor, Fire Equipment, Marine Carbon Dioxide Fire Extinguishing System, Automatic Fire Alarm Linkage Control System, Dry Powder Fire Extinguishing System, Balanced Pressure Type Foam Proportioning Device, Fire Trucks and other fire equipments such as Fire-fighting Water Supply Equipment, High Building Escaping Equipment, Fire Pump, Fire Extinguisher etc. They are totally 12 groups including the fire products of more than one hundred specifications. Our bids are accepted for many times in the important national projects such as Pudong International Airport Project, Bohai Oil Development Project etc., and our company is called as the Golden Shield of Fire-fighting Industry by customers. Our products are popular in oversea market such as Asia, Europe and Middle East etc. Jindun Group is a new part of the brand “MADE IN CHINA” in the international fire-fighting industry market.

● Jindun Group always believes in the aim of “Improve the Product with the Technique”, and persists with the principle of “Core technique Creates Core Competition”. We have successively established the strategic fellowship with the famous colleges such as University of Science and Technology of China, Huazhong University of Science and Technology. We also have established the Manufacturing and Learning Alliance with University of Science and Technology of China and founded the national-class fire lab in the fire-fighting industry. At the same time the group owns an advanced technology talented team composed of the old, the middle age and the young generations. With their efforts, more and more new products are continuously developed. Patents and literature software with intellectual property increase greatly and bring marvelous economic benefits for companies and society. Our company is awarded as the High and New Technology Enterprise by the municipal government, Shanghai.

● At the same time the company owns the perfect management system, and we established the ISO9001 quality management system in 2000. Our company was granted the approval of the German Rhine Tü V. Our Automatic Sprinkler System is the first to be granted the Certificate of China Compulsory in the industry in 2001, and then is granted the approval of American UL in 2005 and the approval of FM in 2006. In order to establish the good prestige and brand of Jindun, Shanghai Jindun strengthens the quantity control during the whole process. We own the advanced quality test equipments, instruments, and the professional inspectors.

● Jindun group insists on the production and management principle of" Sincere and Honest with Clients ".For years, our company has been granted many honored titles, such as " AAA" class credited enterprise and the good-faith enterprise etc. by the government and related industry organizations. Jindun has established the sale and service organization in 32 provinces, municipalities directly under the Central Government, the important cities in whole country to offer the customer a dragon service of “design, construction, service, and maintenance". We found the branch offices in Germany, Russia and Middle East, thus forming the international pattern of sale, service and the good-faith network of Jindun Group. Treating the customer, Jindun group always insists on the aim of " perfect, suitable, fast, guarantee, double wins". Treating other companies of the fire industry, Jindun group firmly believes in the truth of " The hundred flowers struggles colorfully, and hundred school of thought contends. There is competition, there will be development".

● Jindun group insists on contributing to supply the perfect products to the customers, and also would like to perfect China fire-fighting industry and build the stage of brand “MADE IN CHINA” in the international fire-fighting market together with other industry fellows. The staff of Jindun will make great efforts to develop a hundred-year Jindun with diligence and intelligence.

Declaration

Shanghai Haodun International Trading Co.,Ltd., as a wholly-owned subsidiary company of Shanghai Jindun Fire-fighting Security Equipment Co.,Ltd., specialized in the export and import business for fire-fighting security products. The products of Shanghai Jindun Fire-fighting Security Equipment Co., Ltd. is exported to all over the world by Shanghai

Haodun International Trading Co.,Ltd..

































































Categories:


product name:

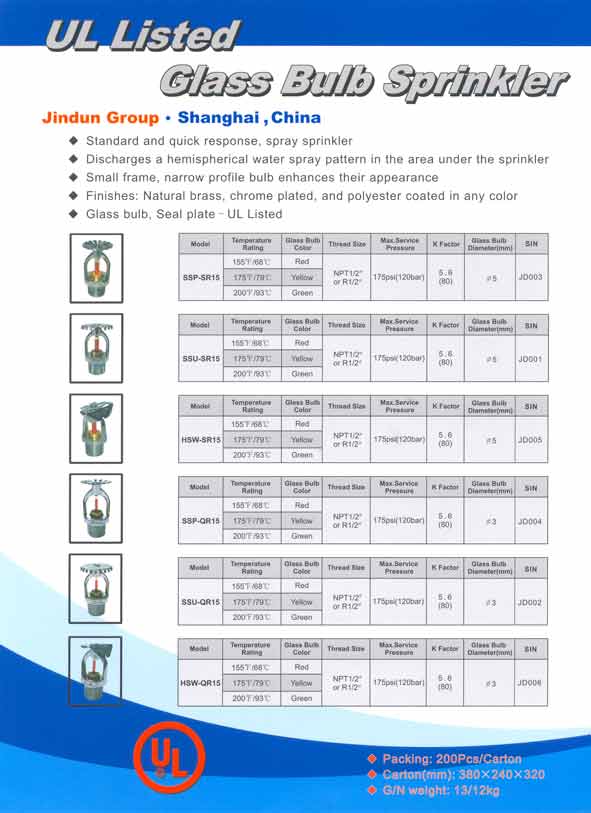

UL Glass Bulb Sprinkler


clicks:

1546 times

UL Glass Bulb Sprinkler
View big picture





description:

UL Glass Bulb Sprinkler

>Standard and quick response, spray sprinkler

>Discharges a hemispherical water spray pattern in the area under the sprinkler

>Small frame, narrow profile bulb enhances their appearance

>Finishes: Natural brass, chrome plated, and polyester coated in any color

>Glass bulb, Seal plate–UL Listed




CO2 AUTOMATIC FIRE EXTINGUISHING SYSTEM

Categories:

Gas Fire Extinguishing System->CO2 Automatic Fire Extinguishing System

product name:

CO2 Automatic Fire Extinguishing System


clicks:

220 times

CO2 Automatic Fire Extinguishing System
View big picture




description:

Carbon Dioxide Automatic Fire Extinguishing System Carbon Dioxide (CO2) does no harm to most substances and doesn’t leave its trace or has no pernicious effects after fire extinguishing, which is suitable for putting out fires caused by various combustible or inflammable liquid and solid substances, and for gas fire in which gas supply can be cut down before conducting extinguishing. CO2, as a kind of fire extinguishant, takes such characteristics as non-conduction, non-contamination, no water damage, good extinguishing efficiency and low price, etc. It is especially suitable for fire protection of precious material storeroom for books and files, etc., computer room, power substation and switch board room, communication room, garage, ship’s hold, central control room and other places. High-pressure CO2 Automatic Fire extinguishing System is composed of fire detector, fire alarm controller, fixed fire extinguishing device, pipeline and nozzle, etc. This system can be designed into unit independent system or combined distribution system according to the user’s requirements, which can extinguish a fire occurred in single or multi-protection area through adopting fully submerged or local application fire extinguishing mode. When a fire occurs, the fire alarm controller will conduct logic analysis to the fire signal detected by the heat detector and smoke detectors and send out fire extinguishing command to turn on container valve so that CO2 will be sprayed into the protection area through the valve, pipeline and nozzle, and then it will quickly gasify, lower the temperature and completely cut off the oxygen to extinguish the fire. Every group of gas cylinder of this system is equipped with the weight-reduction alarm device. When the weight of the fire extinguishant is reduced by 10 because of leakage, etc., the system will send out the acousto-optic alarm signal so that the gas cylinder can be timely maintained and recharged.

ZFP DRY POWDER AUTOMATIC FIRE EXTINGUISHING SYSTEM

Categories:


product name:

ZFP Dry Powder Automatic fire Extinguishing System


clicks:

240 times

ZFP Dry Powder Automatic fire Extinguishing System
View big picture




description:

ZFP Dry Powder Automatic fire Extinguishing System

The dry powder automatic fire extinguishing system can be designed as independent pipe network system and combined distribution pipe network system. Full flooding extinguishing mode or local extinguishing mode can be adopted.

The dry powder fire extinguishing system is widely used for B, C fire and special fire . It can also extinguish A , D, and E fire. The dry powder fire extinguishing system is suitable for extinguishing the fire where deliquescence and melting should be avoided , and the water system and foam system can not be used.

The dry powder fire extinguishing system can put out the electric fire

with the power on.

The dry powder fire extinguishing system can extinguish the fire at

the very low or high temperature. The dry powder can be stored for a long time without deterioration.

HFC-227ea AUTOMATIC FIRE EXTINGUISHING SYSTEM

Categories:


product name:

HFC-227ea Automatic Fire Extinguishing System


clicks:

384 times

HFC-227ea Automatic Fire Extinguishing System
View big picture




description:

Automatic Fire Extinguishing System

In order to protect atmospheric ozone layer from destruction, the main

countries in the world signed the Montreal Treaty in 1986 to stop usingHalon

extinguishant. Heptafluoropropane extinguishant has such characteristics as

high extinguishing efficiency and quick speed and remains no residua after

discharging and low toxicity , which is regarded as a kind of an ideal

substitute product for Halon extinguishant . Therefore , our company has

newly developed and manufactured ZQ Series and ZQW Series

Heptafluoropropane (HFC-227ea) Automatic Fire extinguishing System .

ZQ Series Heptafluoropropane Automatic Fire extinguishing System is

composed of storage cylinder , liquid check valve , high-pressure hose ,

manifold , selective valve , pipe network , nozzle and fire alarm controller ,

etc .

ZQW Series Heptafluoropropane Automatic Fire  extinguishing System is
composed  of  storage cylinder , liquid check valve , high-pressure hose ,  box ,
nozzle and fire alarm controller, etc. The storage pressure of ZQ system at 20℃
is 4.2MPa, highest working pressure at 50℃ is 5.3MPa . The storage pressure of
ZQW system at 20℃is 2.5MPa, highest working pressure at 50℃ is 3.4MPa.
 Heptafluoropropane Automatic Fire extinguishing System remains no residuum after
 its discharging with low toxicity, which can be applied in occupancies where  there
 is somebody working or on duty. Main Technical Parameters of System
Charging
Pressure
(20℃)
Max.
Pressure
(50℃)
Charging
Rate
Pressure of
Driving Gas
Source
Working
 Power
Standby
Power
Charging
 Time
Start Mode
Storage
Cylinder

4.2MPa

5.3MPa
≤1.15kg/L
6MPa
220V
DC24V
≤10s
Automatic,
Manual and
Emergency
40L70L
90L
120L
150L180L






IG541 EXTINGUISHING SYSTEM

Categories:

Gas Fire Extinguishing System->IG541 Extinguishing System

product name:

IG541 Extinguishing System



clicks:

120 times

IG541 Extinguishing System
View big picture







description:

Mixed gas (IG541) Fire Extinguishing System
Facing the “Vienna Treaty”, “Montreal Treaty” of protecting atmospheric ozone layer from destruction commonly concerned in the world side, our company has newly developed and manufactured Mixed Gas Automatic Fire Extinguishing System. Nitrogen (N2), Argon (Ar) and Carbon Dioxide (CO2) mixes the extinguishant in a certain proportion, which is a kind of pure and natural clean gas extinguishant.
The extinguishant has such characteristics as following: does not contaminate the protective target, has no destructiveness to atmospheric ozone layer (ODP is zero), has no harmful effect to the human body, animals and plants, has non-conduction, called as “pure and natural green fire protection product” for its colorless, tasteless and toxicantless, regarded as one of the ideal substitute products for Halo-alkane extinguishant. Its mechanism of fire fighting is to lower the concentration of oxygen in fire-ground below the required concentration of maintaining combustion so as to extinguish the fire, which is a physical reaction exactly.
The structure of Mixed Gas automatic Fire Extinguishing system of our Company takes such characteristics as following:
The container valve is designed as differential pressure for sealing airtight, which can ensure the performance of sealing reliably and make the extinguishant a permanent storage. The operation of system can be diversified multiply (electrical control, automatic control, electric manual control and mechanical emergency manual control, etc.), which can operate the system reliably. Through the throttling board, the pressure of pipeline can be decreased so as to make the pipe network much more safety.


Noninal Working
Pressure

Max.Working
Pressure

Min.Working
Pressure

Pressure
Of Driving
Gas Source

Woring
Power

Standly
Power

Charging
Time

Start
Mode

Storage
cylinder

14.9MPa

17.2 MPa

13.6 MPa

6 MPa

22OV

DC24V

<60S

Automatic,Manwual and Emergency

80L

ZSFZ WET TYPE ALARM VALVE

ategories:

Automatic Sprinkler System->ZSFZ Type Wet Type Alarm Valve

product name:

ZSFZ Wet Type Alarm Valve



clicks:

253 times

ZSFZ Wet Type Alarm Valve
View big picture







description:

ZS Wet Type Automatic Sprinkler System
ZSFZ Wet Type Alarm Valve
ZS Wet Type Automatic Sprinkler System, which is composed of ZSFZ Wet Type Alarm Valve and other parts (such as pressure switch, water flow indicator and sprinkler), is a kind of widely used fixed fire extinguishing system. The pipe network is full of water and is in a standby working condition for a long period. It is suitable for using in a place with an ambient temperature of 4℃~70℃ (it only can be installed vertically). When there is a fire in the protection area, the ambient temperature rises, temperature sensitive element of the sprinkler (glass bulb) breaks, the system starts automatically, sprays water to the fire area directly and sends out alarm signals to alarm, extinguish and control the fire.
ZSFZ Wet Type Alarm Sprinkler manufactured by our company shall be complete supplied. Users should install it according to the height between the upper and lower flange surface and connecting dimension of the flanges.



Model and Specifications of ZSFZ Wet Type Alarm Valv


Type

Inside Nominal Diameter

Max. Working Pressure
(MPa)

Height of Alarm Valve(mm)

Outside Diameter of Flange
(mm)

Inside Diameter of Flange Screw Hole
ΦB(mm)

Qty. and Dia. Of Screw Hole
n×φA(mm)

Weight of Device
(Kg)

Overall Dimension
L*W*H
(mm)

ZSFZ100

100

1.2

247

215

180

8×Ø18

35

980×310×455

ZSFZ150

150

1.2

270

280

240

8×Ø23

45

1030×340×480

ZSFZ200

200

1.2

410

335

295

12×Ø23

60

1085×360×540

.
